500 ton linear winch type KTC 400

KTC 400 linear winch capacity 500 mTon
This linear winch is designed and engineered by Kley France on specification of Bezemer. This machine has socket passing capabilities and is often used for pipe pull operations, however also regularly used for deepwater lowering operations.

The linear winch is capable of continuous paying out under load. The power unit has some special features to accommodate this type of operations, i.e. large hydraulic oil cooling capacity.

General description linear winch
The linear winch consists of two grippers mounted in a frame. The wire rope passes through each gripper. Each gripper is capable of holding the wire rope. The grippers move back and forth (extend and retract) through the actions of four hydraulic main cylinders. The grippers are independently controlled and their movement can be sequenced to either pull-in or payout the wire rope.

The holding action is developed by two wedges inside each gripper. If the wedges are contacting the wire rope when a load is applied to the wire rope, the wedges will clamp onto and hold the wire rope. When one gripper is pulling, the wire rope slips through the wedges of the other gripper.

Four hydraulic wedge cylinders control wedge movement. Extending the wedge cylinders closes the wedges. Retracting the wedge cylinders opens the wedges. Each pair of wedge cylinders is hydraulically connected in parallel to assure equal actuating forces.

Wire rope pull in is accomplished manually or automatically by the control system. In both the manual and automatic mode, the #1 and #2 gripper wedges maintain in contact with the wire rope at all times.

The linear winch consists of two grippers mounted in a frame. The wire rope passes through each gripper. Each gripper is capable of holding the wire rope. The grippers move back and forth (extend and retract) through the actions of four hydraulic main cylinders. The grippers are independently controlled and their movement can be sequenced to either pull in or payout the wire rope.

The holding action is developed by two wedges inside each gripper. If the wedges are contacting the wire rope when a load is applied to the wire rope, the wedges will clamp onto and hold the wire rope. When one gripper is pulling, the wire rope slips through the wedges of the other gripper.

Four hydraulic wedge cylinders control wedge movement. Extending the wedge cylinders closes the wedges. Retracting the wedge cylinders opens the wedges. Each pair of wedge cylinders is hydraulically connected in parallel to assure equal actuating forces.

Wire rope pull-in is accomplished manually or automatically by the control system. In both the manual and automatic mode, the #1 and #2 gripper wedges maintain contact with the wire rope at all times.

Wire rope payout can also be accomplished manually or automatically. Since the wedges holding the load can not be opened, control of the load is always maintained.

Downloads

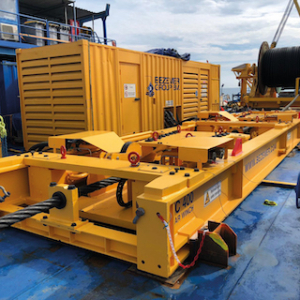

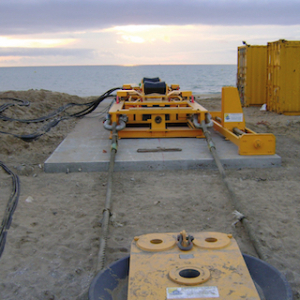

Projects where this product is used

Typical Layout

500-ton-linear-winch-ktc-400

Performance data

  • Maximum Pulling Capacity  500 mTon @ 1,50 m/min
  • Maximum Speed  5,70 m/min @ 130 mTon
