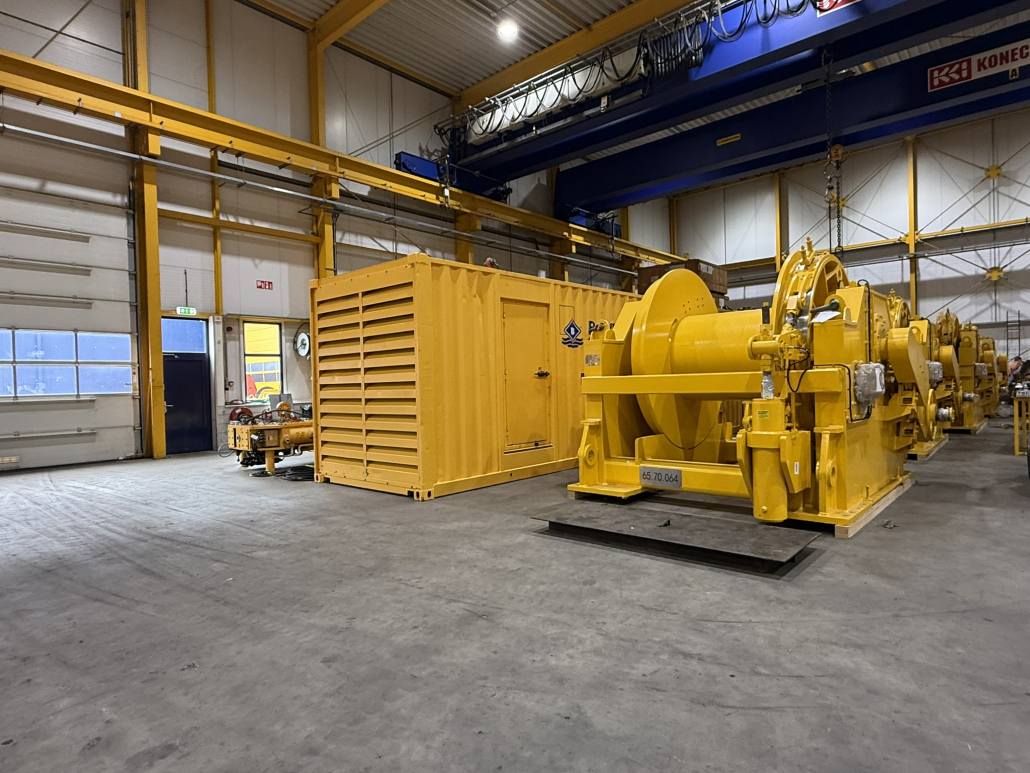

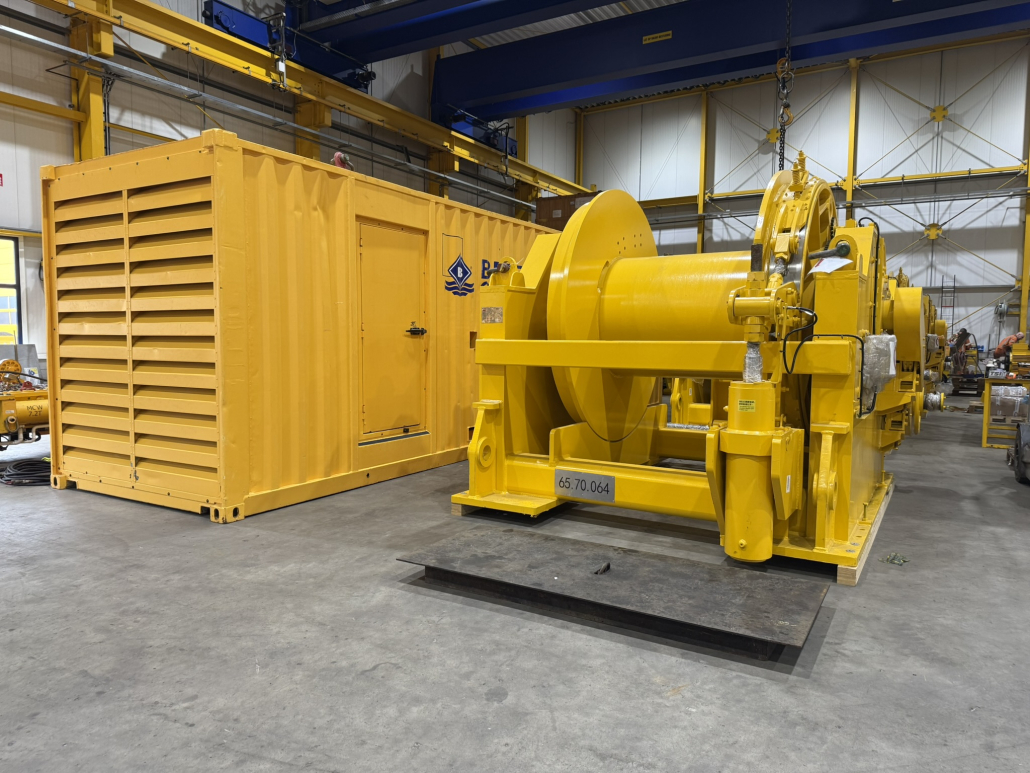

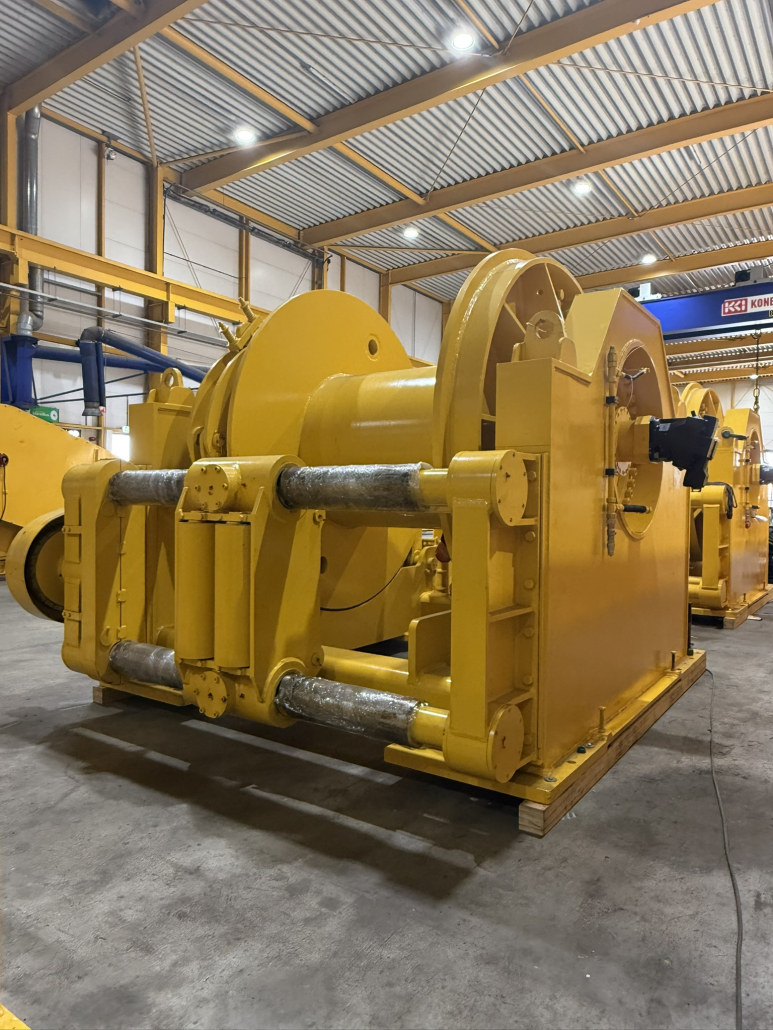

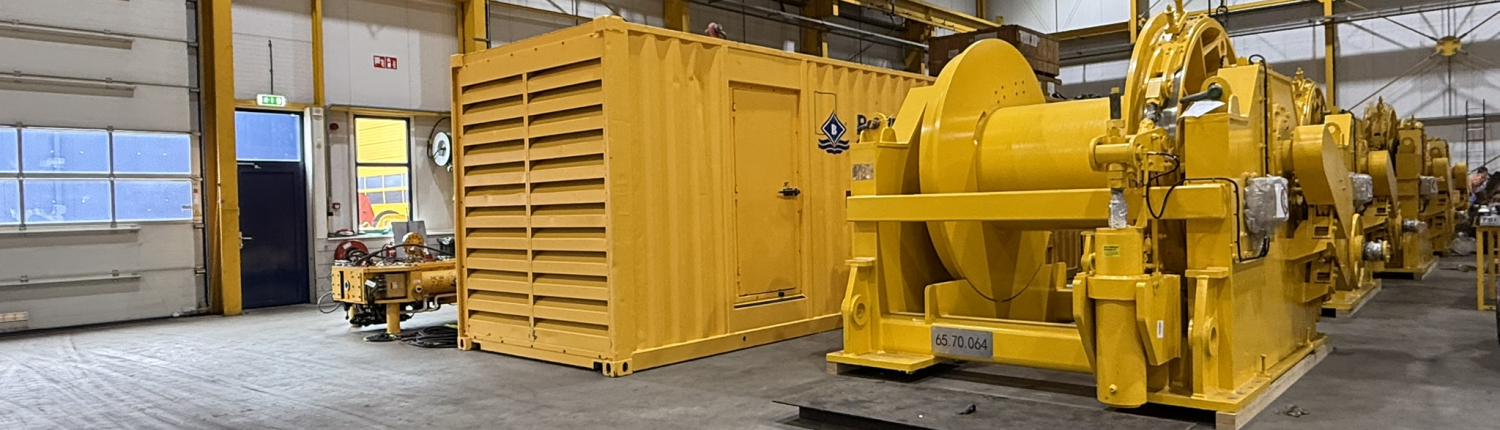

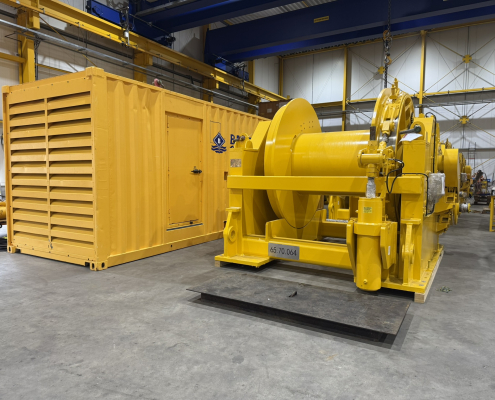

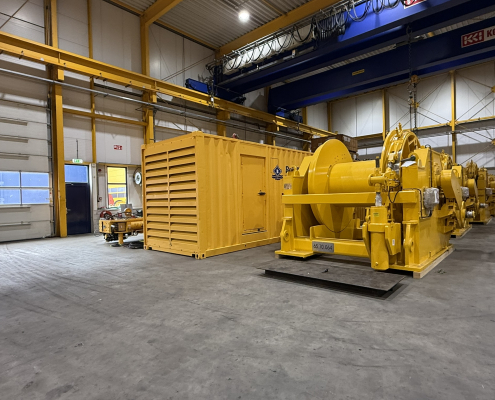

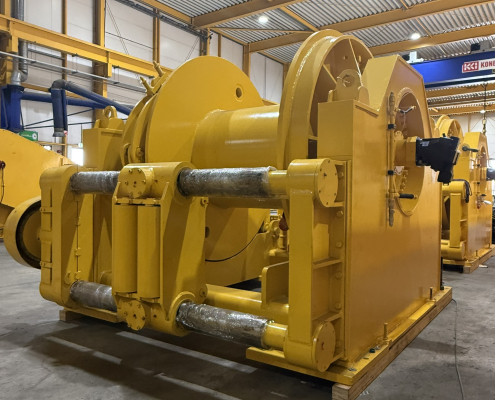

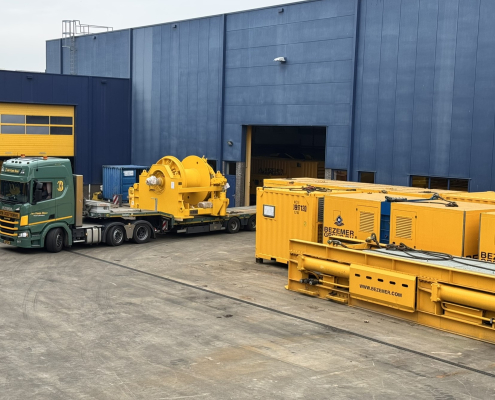

A durable 100T pulling and lifting winch
Bezemers’ 100T single-drum winches are hydraulic-powered winches. Each winch is driven by a hydraulic motor fitted to a planetary gearbox. The dual displacement motor allows for high torque or high speed performance.
The winches are equipped with three brake systems, making these winches suitable for lifting operations.
With a storage capacity of over 1.500 meters of 52 mm diameter steel wire rope, this winch not only has a high holding capacity but also allows for deployment in various operations.
The winches can be powered by either diesel or electric hydraulic power units.
Performance data
Based on a line pull with a steel wire rope diameter of 52 mm
- Maximum pulling capacity 100 Mton @ 6 m/min on bottom layer
- Brake capacity 200 Mton on bottom layer
Additional information
If you’re interested in our 100 Tonnes drum winches or want to learn more about our products and services, please don’t hesitate to contact us or request the specifications by clicking the yellow download button.
